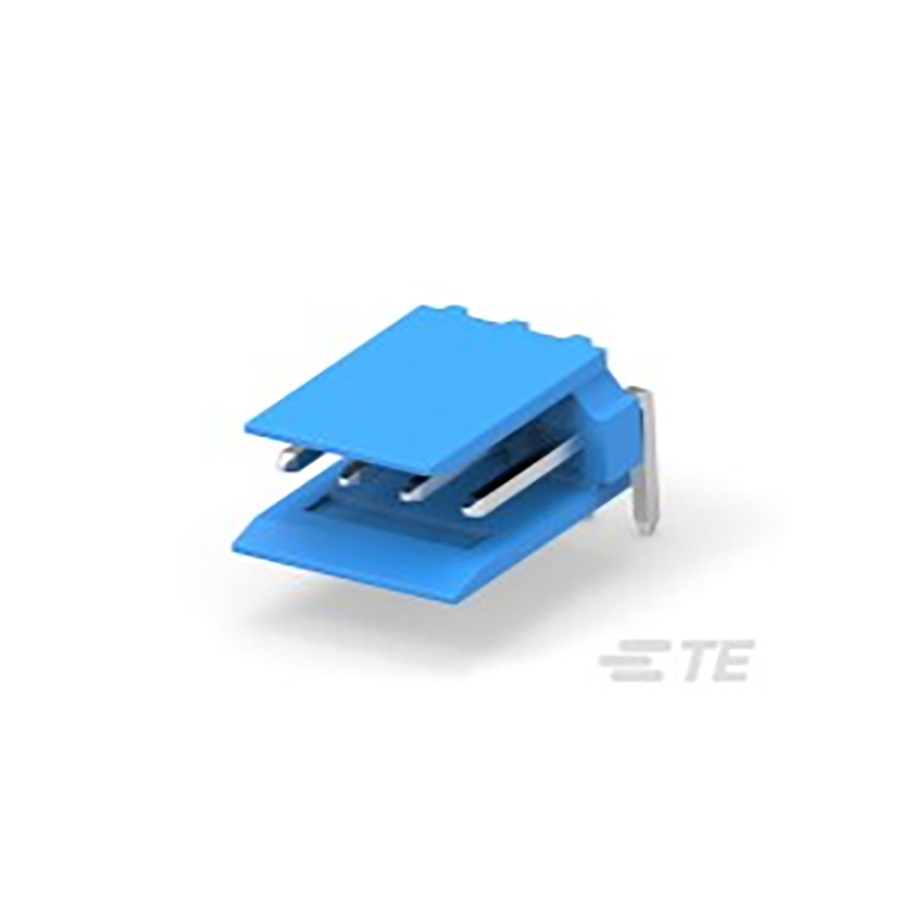

281698-4
Manufacturer:
TE Connectivity
Mfr.Part #:
281698-4
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 500 V |
| Length | 10.16 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Material | Glass, Polyester |
| Packaging | Bulk |
| Depth | 12.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Lead Length | 2.9 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Working Voltage | 500 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Blue |
| Gender | Male |
| Number of Contacts | 4 |
| ELV | Compliant |
| Hole Diameter | 1 mm |
| Number of Poles | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Resistance | 30 mΩ |
| Contact Current Rating | 3 A |
| Housing Color | Blue |
| Contact Mating Length | 7.0104 mm |
| Keyed | No |
| Contact Gender | Male |
| Mating Post Length | 7 mm |
| Contact Shape | Square |
| Shrouded End Dimension | 1.27 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Termination Post Length | 2.9 mm |
Stock: 2545
Distributors
pcbx
pcbxUnit Price$0.45055
Ext.Price$0.45055
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45055 | $0.45055 |
| 10 | $0.38301 | $3.83010 |
| 25 | $0.37190 | $9.29750 |
| 50 | $0.34622 | $17.31100 |
| 100 | $0.32231 | $32.23100 |
| 300 | $0.30966 | $92.89800 |
| 500 | $0.29751 | $148.75500 |
| 1000 | $0.26930 | $269.30000 |
| 3000 | $0.25525 | $765.75000 |
| 5000 | $0.24194 | $1209.70000 |
